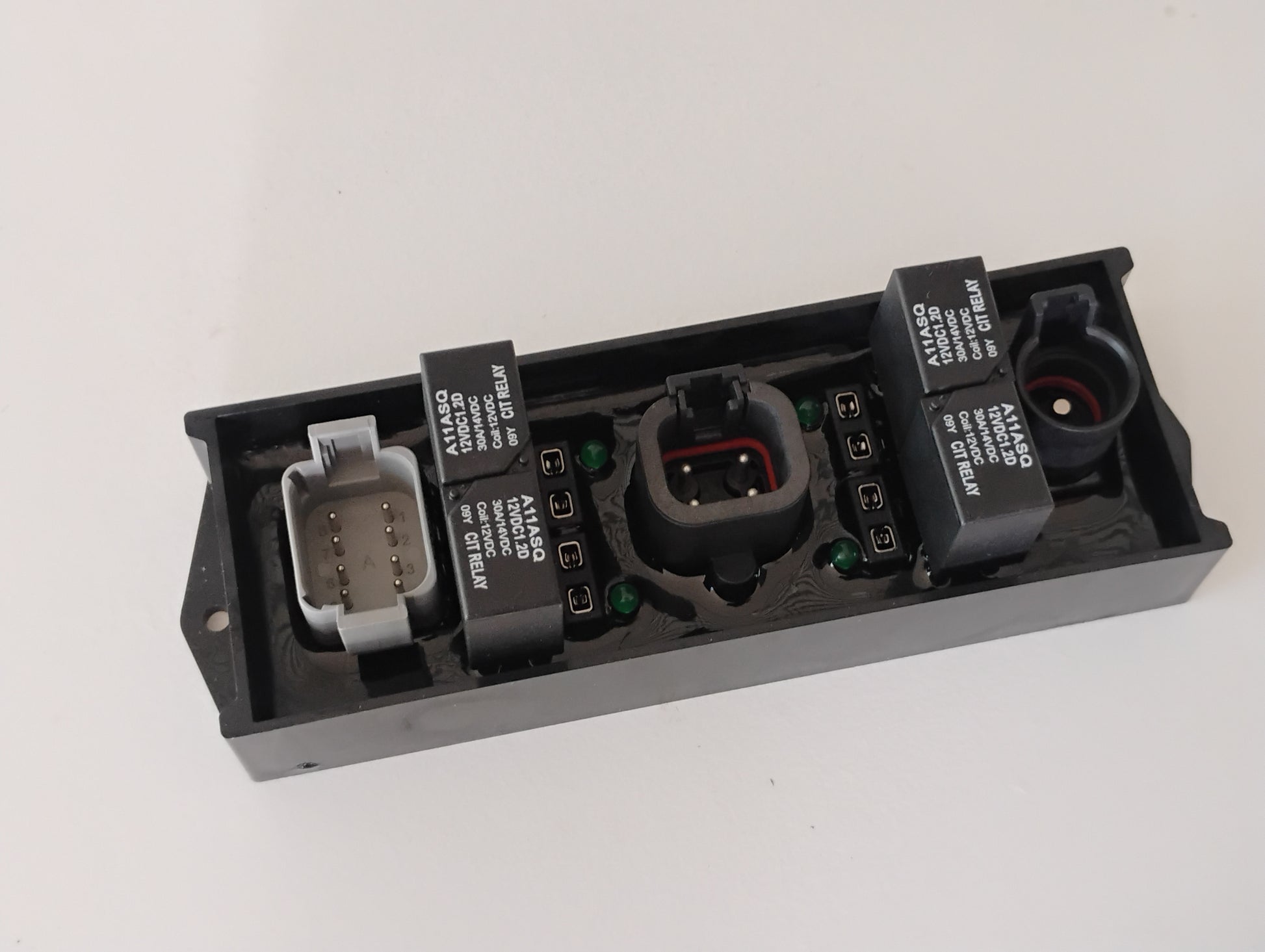

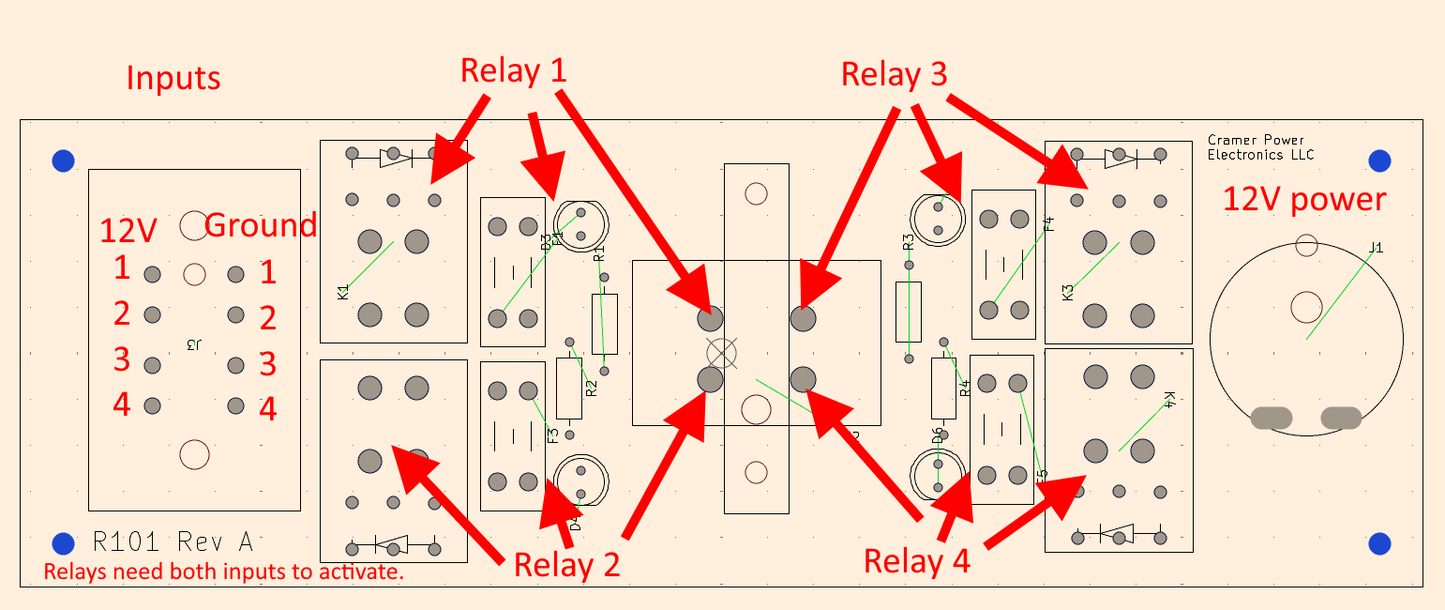

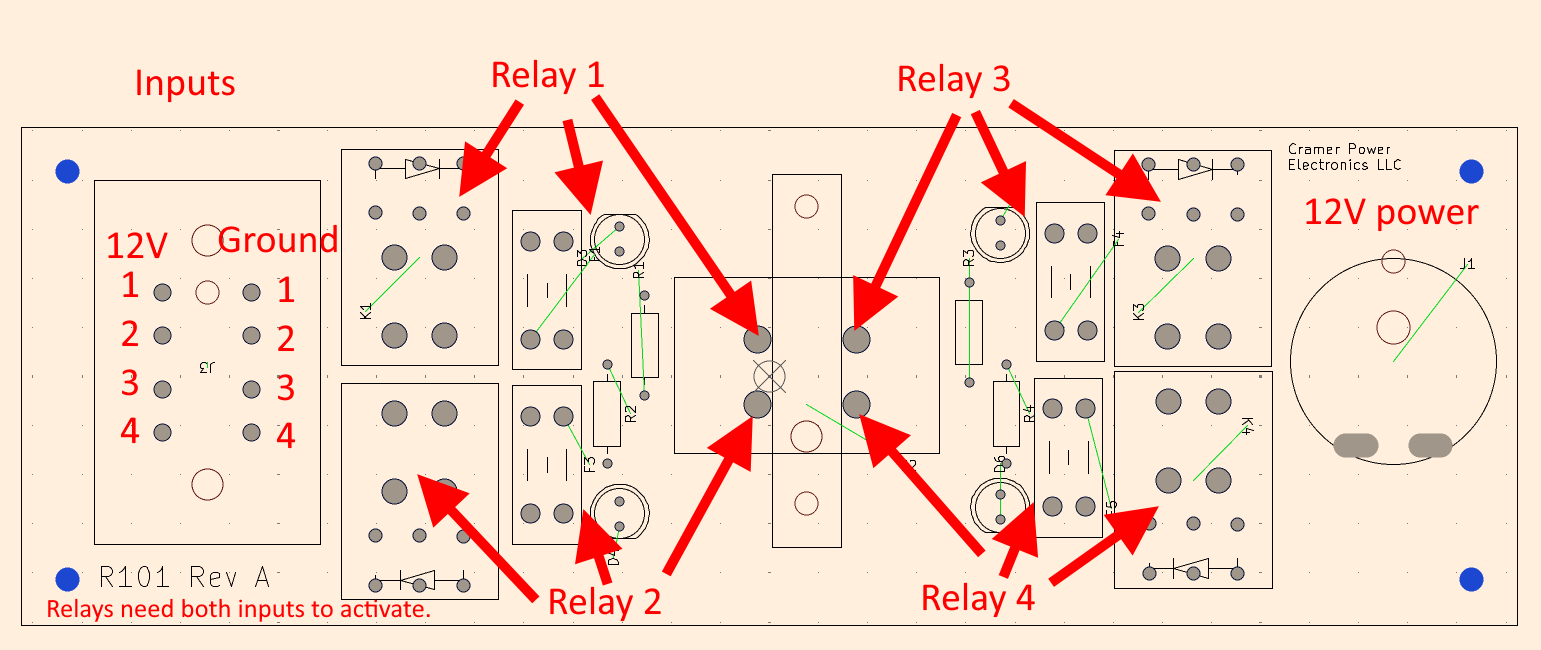

The R101 relay module provides four circuits, each with a relay, fuse, and status light. This is a rugged module with motorsport connectors, potted to protect it from vibration and water. No screw-terminal connections here! This module combines the easy wiring and heavy duty connectors you'd see in a race PDM, but it has the straightforward setup and low price tag that you'll get from staying with mechanical relays and basic fuses.

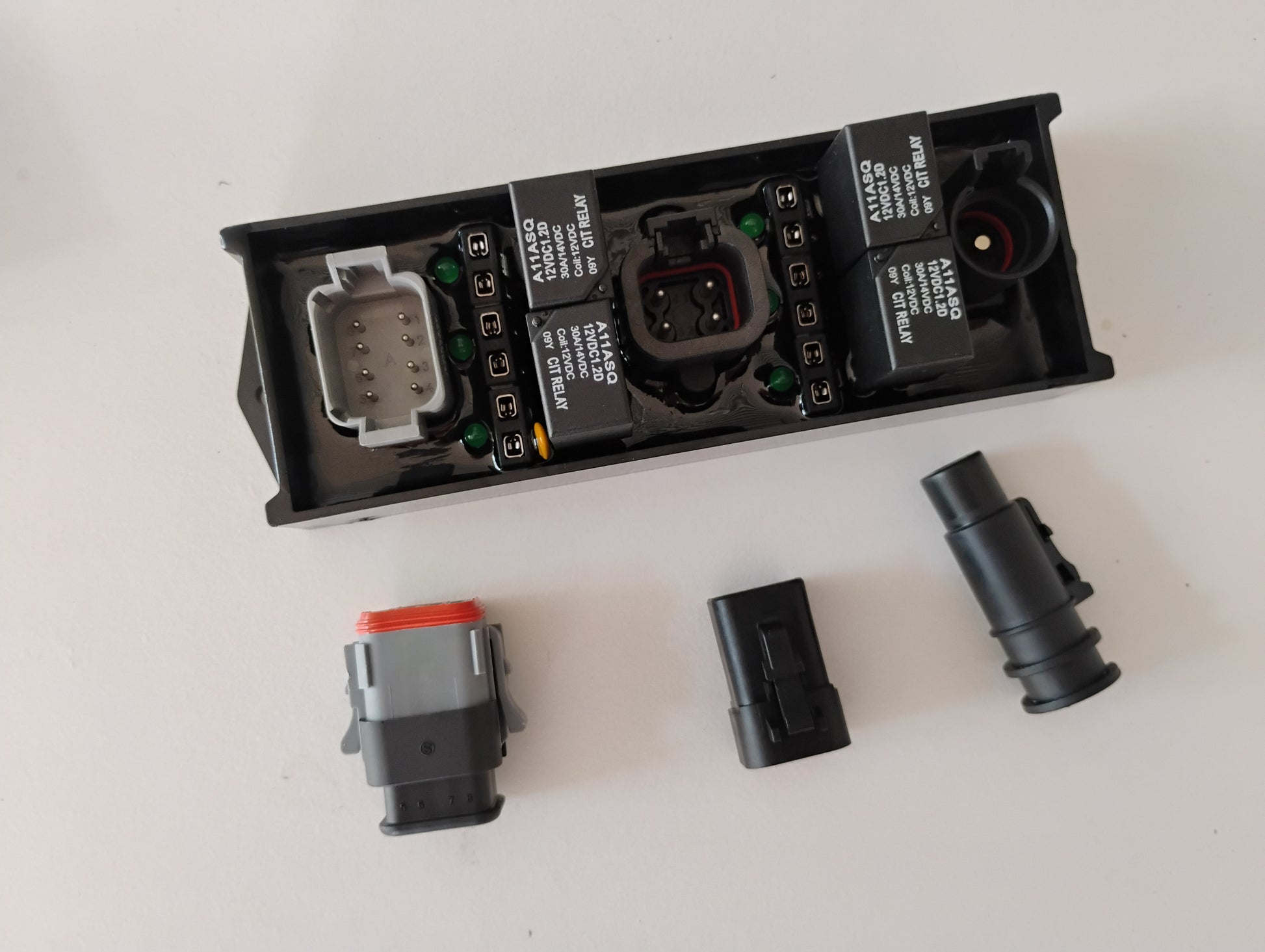

Includes connectors with hardware and pins.
Each of the four relay / fuse combinations can handle up to 25 amps when using the appropriate sized fuse. Maximum total current is 50 amps for all four circuits active at once.
Assembled in the USA. The PCB and enclosure are made in the USA, as is the potting resin. Relays, connectors, and other parts are sourced globally.
